Intense Cycles Carbine

Intense Cycles Carbine
Please select options

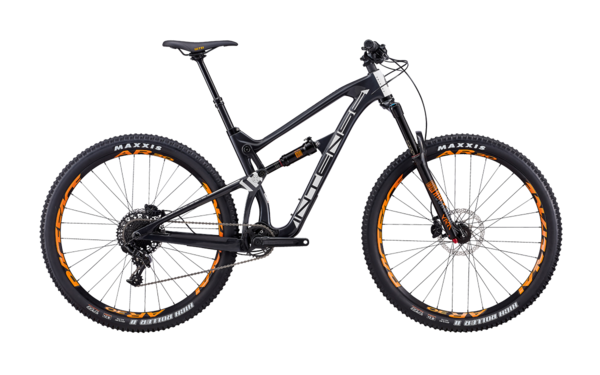

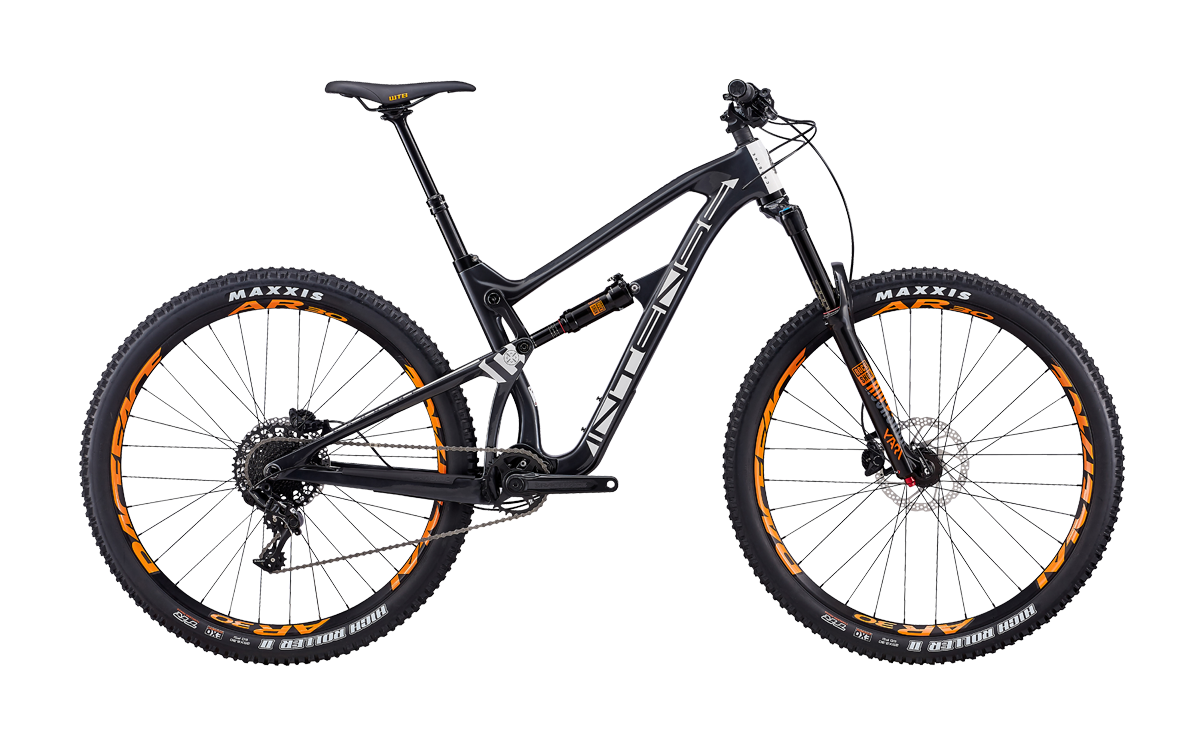

For 2018, the new bike offers up a modern trail geometry, with longer reach for a more confidence-inspiring ride. The JS Tuned suspension “enduro link” has been developed and refined, offer longer links (including a carbon upper link) to optimize leverage curve, axle path and overall performance to make the Carbine an uncompromising 29” enduro race machine.


Frame Carbine 29” Enduro Monocoque Carbon Frame. Alloy top link, internal shift, dropper post and brake routing. ISCG05 mounts, flack guard armour, 155mm travel
Fork Rock Shox Yari RC 29, Solo Air, 160mm, Boost 110x15mm
Headset Intense Tapered
Rear Shock Rock Shox Deluxe RT3, 230x60mm
Rims/Wheels Race Face AR 30, 29", 32 Hole
Hubs 32 Hole 110 x15mm Front Hub; 148x12 BOOST Rear Hub XD driver, 6 Bolt
Spokes DT Swiss Champion
Tires Intense Foundation 29"
Crankset Race Face Aeffect 175mm, 30T
Bottom Bracket Race Face BB92
Chain Sram PC 1110 11speed
Front Derailleur N/A
Rear Derailleur Sram NX 11speed
Shifters Sram NX 11speed Trigger
Handlebars Intense Recon 780mm Alloy
Tape/Grips Intense Dual Lock-on
Stem Intense Recon 45mm
Brakes Shimano m500 Hydraulic Disk 180mm Front & 180mm Rear
Saddle WTB Silverado Sport w/ Steel Rails
Seat Post Race Face Aeffect 31.6mm, 150mm Dropper
Color(s) Black
Sizes Large

* Subject to change without notice.
